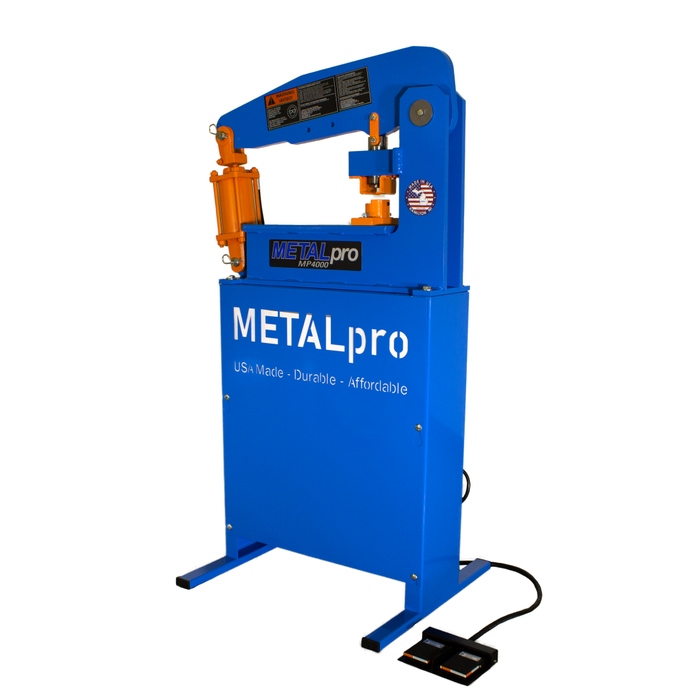

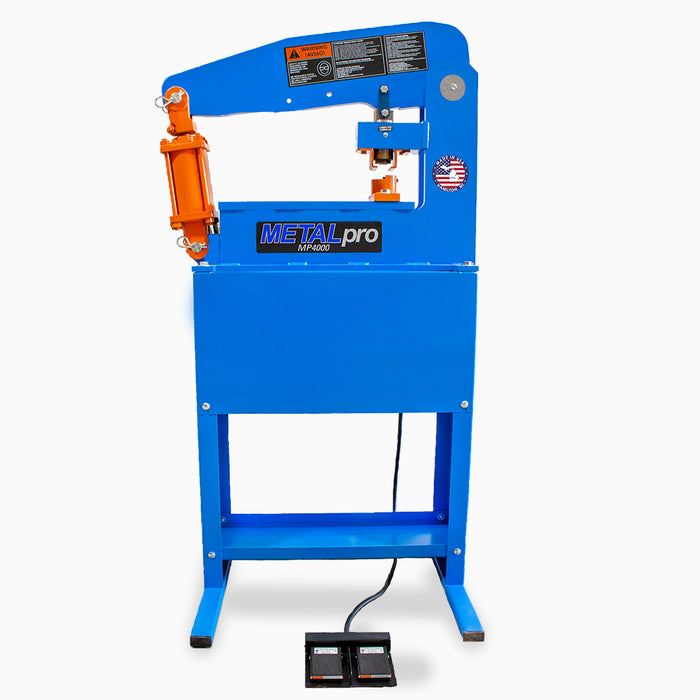

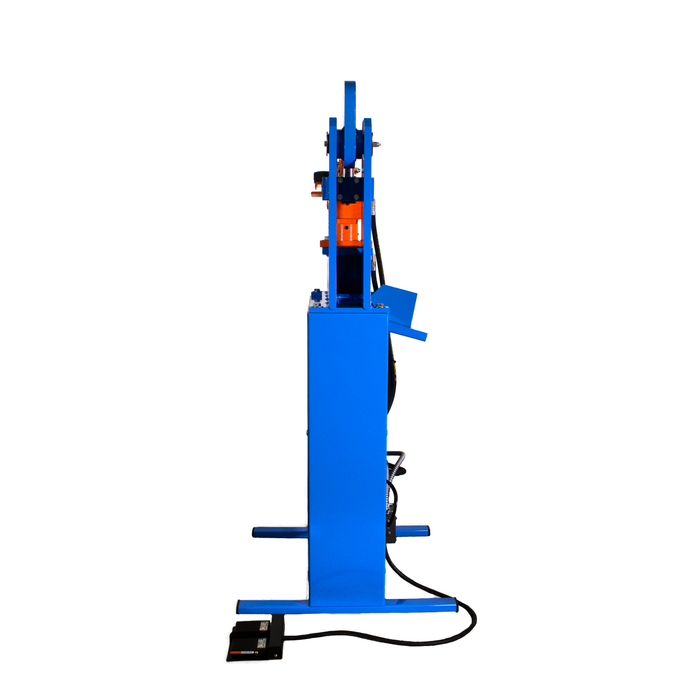

Metal Pro 40 Ton Ironworker with Footswitch and Open Work Station - Versatile Metal Fabrication Powerhouse

Save 10% Save 10%
Original price $3,499.99
Original price $3,499.99 - Original price $3,499.99
Original price $3,499.99
Current price $3,149.00
$3,149.00 - $3,149.00
Current price $3,149.00

Need Financing? Fill out this form with H.I.L Financial to get a fast approval!

Expert Support Available! 24/7 via Live Chat or Call Us +1 (816) 635-0030

Warranty & Part Replacement Policys

All equipment comes with a Limited or Lifetime Warranty!

Multiple Financing & Payment Methods

We accept ACH transfers, money wires and checks as alterative payment methods while also providing multiple financing options for customers.

Description

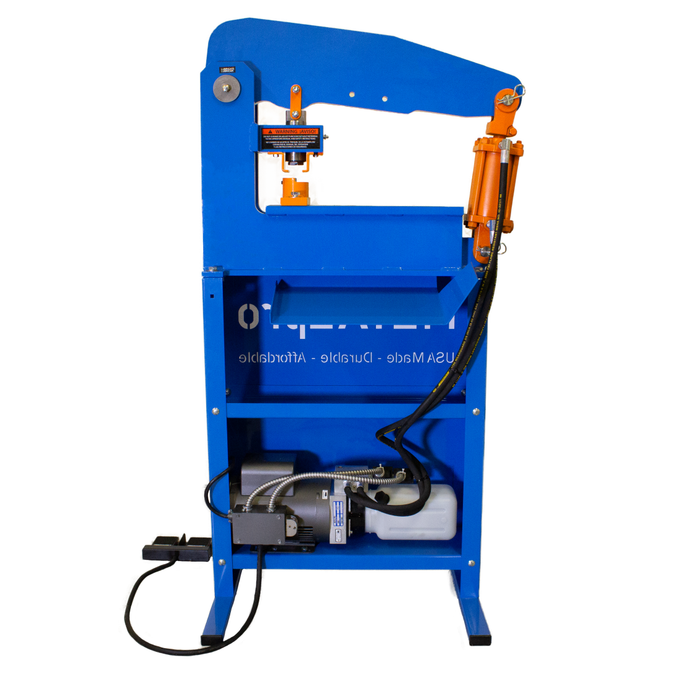

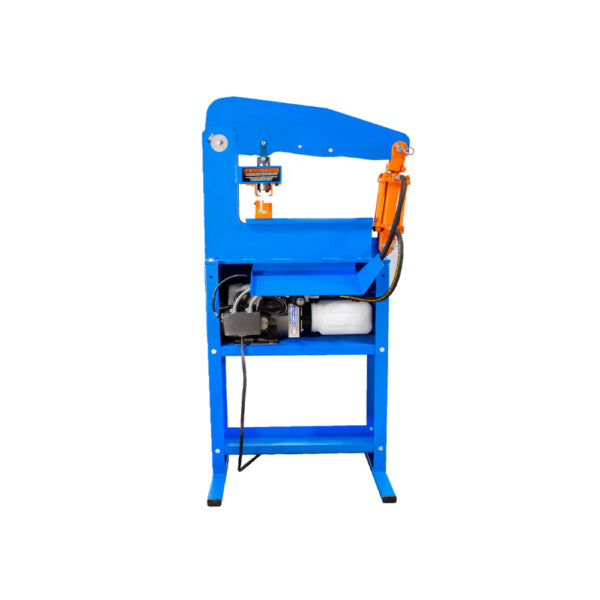

The MP4000 is a 40-ton ironworker, powered by a 110/120V, single phase standard wall outlet or generator. It’s compact and sturdy design boasts 40 tons of pressure at the punch station and 20 tons of pressure at the central workstation. This allows the user to punch a 1” round hole through 3/8” mild steel (capable of larger holes through thinner mild steel). METALpro’s footswitch design controls the hydraulic power system.

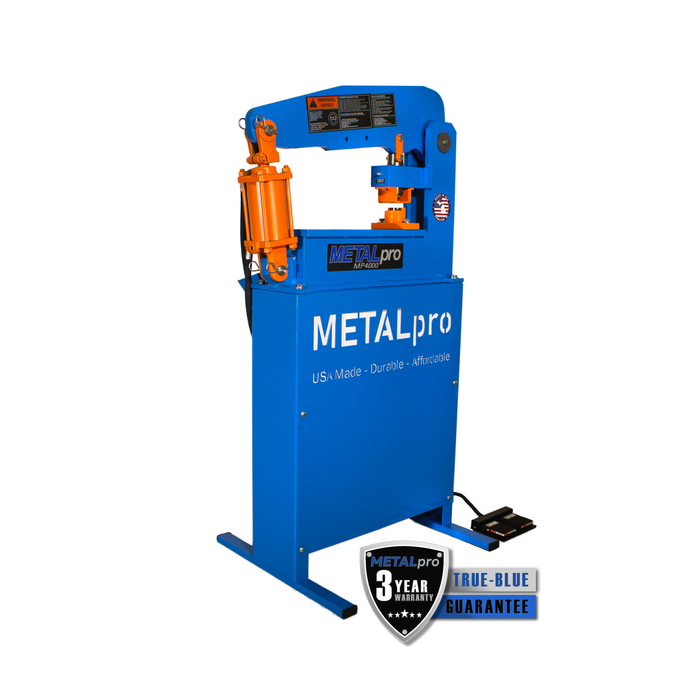

This machine comes standard equipped with METALpro’s punch station, ready to accept any size punch and die set or accessory to fit your needs. With an open central workstation this gives users the option to pick between any one of METALpro’s 3 in 1 shears (6-in, 8-in, 12-in) or brakes (8-in or 12-in). METALpro stands behind their machines with a one-year limited manufacturing warranty. All METALpro machines and accessories are proudly made in the USA and built to last.

*All METALpro accessories can be used across all ironworker models. (MP45PSP on 40 ton models is the only exception)

*ALL METALPRO MACHINES ARE RATED FOR MILD STEEL

Specifications

  • COUNTRY OF ORIGIN: USA
  • CAPACITY: 40 tons
  • SHEAR CAPACITY - FLAT BAR: 3/8" x 4" or 1/4" x 6"*shear sold separately
  • SHEAR CAPACITY - ANGLE IRON: 1/4" x 3" x 3"*shear sold separately
  • SHEAR CAPACITY - SQUARE: 5/8"*shear sold separately
  • SHEAR CAPACITY - ROD: 3/4"*shear sold separately
  • FORMING CAPACITY: Up to 1/2" Mild Steel*brake sold separately
  • FORMING TONNAGE CAPACITY: 20 tons
  • PUNCH CAPACITY: 1" hole through 3/8" Mild Steel
  • POWER: 110/120V Single Phase
  • MOTOR: 1.5 horsepower
  • HYDRAULIC PRESSURE: 2900psi
  • THROAT DEPTH: 3¾"
  • OPERATING WEIGHT: 475 lbs
  • MACHINE DIMENSIONS: 24" x 30.5" x 58"
  • OSHA/ASNI B11-8: Approved
  • WARRANTY: 12 Months
