EKKO EK14S-130 Precision Counterbalanced Walkie Stacker with Side-Shifting - 130-inch Lift Height, Ideal for Versatile Indoor Material Handling
Need Financing? Fill out this form with H.I.L Financial to get a fast approval!
Expert Support Available! 24/7 via Live Chat or Call Us +1 (816) 635-0030
Warranty & Part Replacement Policys
All equipment comes with a Limited or Lifetime Warranty!
Multiple Financing & Payment Methods
We accept ACH transfers, money wires and checks as alterative payment methods while also providing multiple financing options for customers.
Description

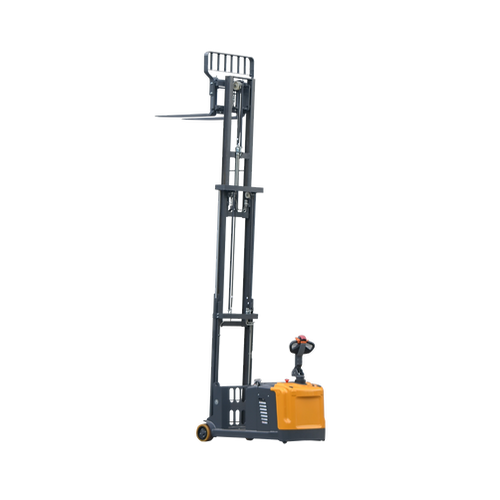

The EKKO EK14S-130 Fully Powered Counterbalanced Walkie Stacker is a versatile piece of equipment that seamlessly integrates the functionalities of both a forklift and a walkie stacker. What sets it apart is its SIDE-SHIFTING capability, which enhances its versatility and makes it exceptionally well-suited for a wide range of tasks. These tasks include the efficient loading and unloading of trucks, effective work on loading docks, streamlined stock room management, and versatile applications within warehouse settings.
Resources Sheets
Features
- Load Capacity: 3300 lb
- Raised Height: 130" (10.83 ft)
- SIDE-SHIFTING
- Adjustable Forks: 8.6-28.3"
- Fork Length: 45.3"
- Mast/Fork Carriage Tilt Forward/Backward: 2/5 Degrees
- Overall Length: 109"
- Overall Width: 39"
- Fork Size (Thick/Width/Length): 1.4/4/45.3"
- Fork Adjust Width: 8.6-28.3"
- Turning Radius: 57"
- Max. Gradient Performance, Laden/Unladen: 6/10%
- Lift Speed, Laden/Unladen (in/s): 4/5.1
- Lowering Speed, Laden/Unladen (in/s): 5.3/4.7
- Charger: 24V/30A
- Driving Motor (AC 24V/2500W)
- Lifting Motor (24V/2500W)
- EPS (Electronic Power Steering) Motor (24V/200W)
- Battery Voltage/Capacity: 24V/210Ah (Side)
- Service Weight: 3840 lb

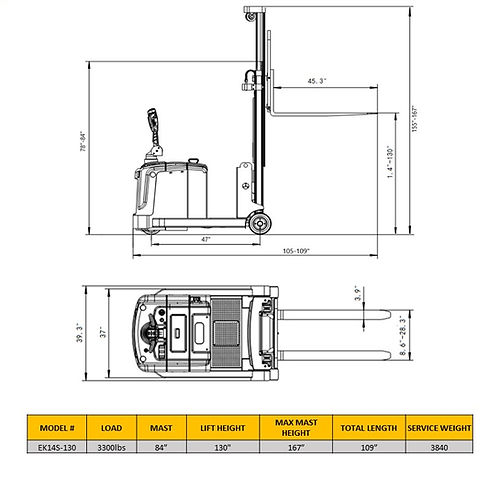

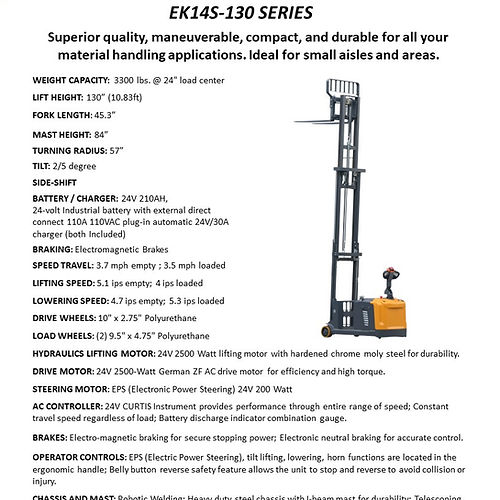

Specifications
- Model: EK14S-130
- Lift: Electric
- Drive: Electric
- Load Capacity (lb): 3300
- Load Center Distance (in): 24
- Wheelbase (in): 47
- Lifting Height (in): 130
- SIDE-SHIFTING (in): 4
- Lowered Mast Height (in): 84
- Extended Mast Height (in): 167
- Mast/Fork Carriage Tilt Forward/Backward (°): 2/5
- Overall Length (in): 109
- Overall Width (in): 39
- Fork Size (Thick/Width/Length) (in): 1.4/4/45.3
- Fork Adjust Width (in): 8.6-28.3
- Turning Radius (in): 57
- Max. Gradient Performance, Laden/Unladen (%): 6/10
- Lift Speed, Laden/Unladen (in/s): 4/5.1
- Lowering Speed, Laden/Unladen (in/s): 5.3/4.7
- Charger (V/A): 24V/30A
- Driving Motor (V/W): AC 24V/2500W
- Lifting Motor (V/W): 24V/2500W
- EPS Steering Motor (V/W): 24/200W
- Battery Voltage/Capacity (V/Ah): 24V/210Ah (Side)
- Service Weight (lb): 3840
Additional Information
- Made from high-quality steel and components
- Durable drives for various terrains, usage, impact, and directional changes
- Ergonomic handle and controls
- Steel construction with robotic welding
- Charger and batteries included
- 3 years limited warranty
