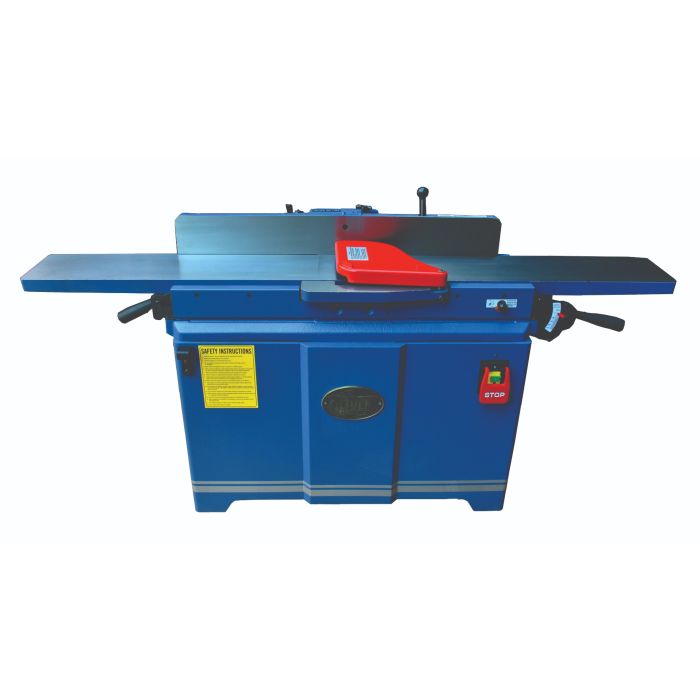

Oliver Machinery 8" Parallelogram Woodworking Jointer w/4 Sided Insert Helical Cutterhead - 4235

Save 8% Save 8%
Original price $3,600.00
Original price $3,600.00 - Original price $3,600.00
Original price $3,600.00
Current price $3,315.00
$3,315.00 - $3,315.00
Current price $3,315.00

Enjoy Free Premium Shipping On All Orders!

Call Us +1 (816) 635-0030 For Huge Discounts On Equipment!

Need Financing? Fill out this form with H.I.L Financial to get a fast approval!

Warranty & Part Replacement Policys

All equipment comes with a Limited or Lifetime Warranty!

Multiple Financing & Payment Methods

We accept ACH transfers, money wires and checks as alterative payment methods while also providing multiple financing options for customers.

Features

  • Extra-long precision ground tables provide a stable work surface.
  • Parallelogram design provides smooth accurate cuts.
  • Cast iron frame offers stable table support.
  • Fully enclosed cabinet with 4" port for superior dust management.
  • Built-in mobile base with lockable wheels.
  • Cabinet includes push pad storage.

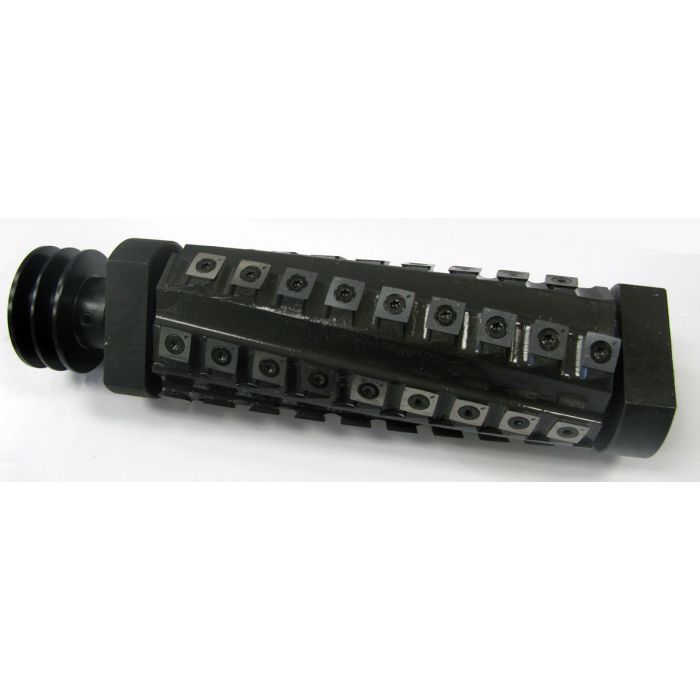

  • Helical cutter head includes premium carbide inserts.
  • 4-sided cutting inserts are indexed and easy to replace.
  • Lever controlled infeed and outfeed table adjustment allows quick set-up.
  • Long precision ground fence tilts up to 135° with positive stops at 45° and 90°.

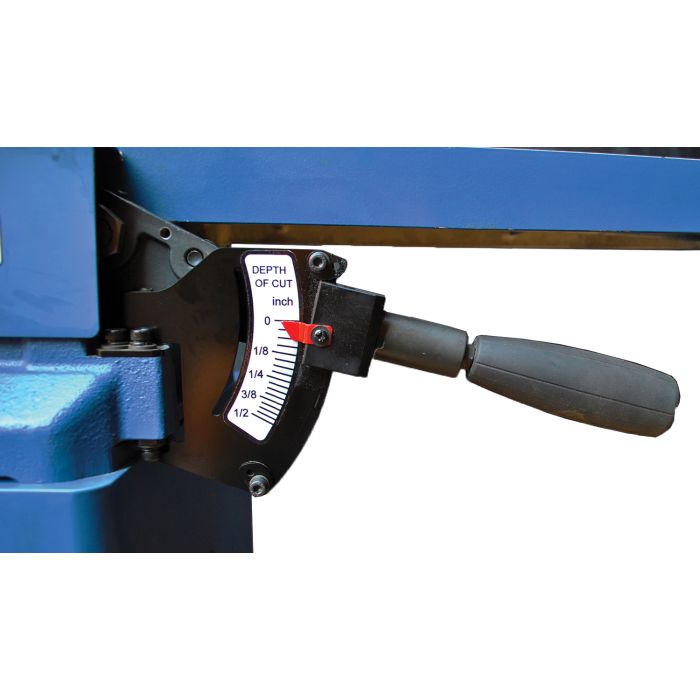

  • Easy to read depth of cut gauge.
  • Large lockable paddle switch for added safety.
  • Powerful TEFC 2HP single-phase motor.
  • Ploy V-belt drive efficiently delivers power to the cutter head.
  • CSA Listed.

Contact us for optional accessories with your purchase!

User Manual & Warranty

Specs

Model Number 4235
Stock Number 4235.201 (2HP, 1Ph, Helical)
Infeed Table Travel 1/2"
Cutterhead Speed 5,500 RPM
Number of Knives (helical) 36 Inserts
Maximum Depth of Cut 1/8"
Rabbeting Capacity 1/2"
Dust Port Diameter 4"
Table Dimensions 72” L x 8” W
Table Height 31-1/2"
Fence Dimensions 38" x 5"
Fence Tilts 90°, 45°, 135°
Positive Stops 90° and 45°
Motor 1Ph 2HP, 230V Only (1Ph, 8 Amp)
Net Weight 352 lbs.
Gross Weight 490 lbs.
