Description

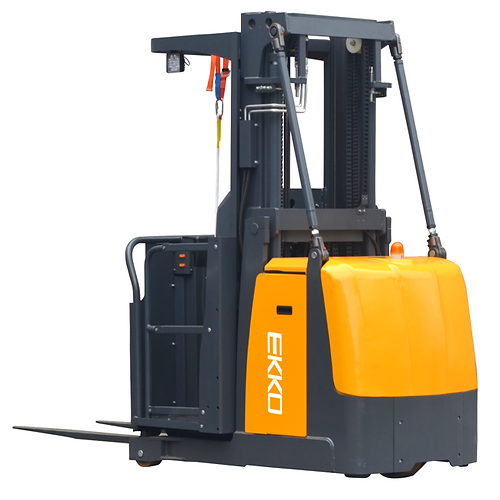

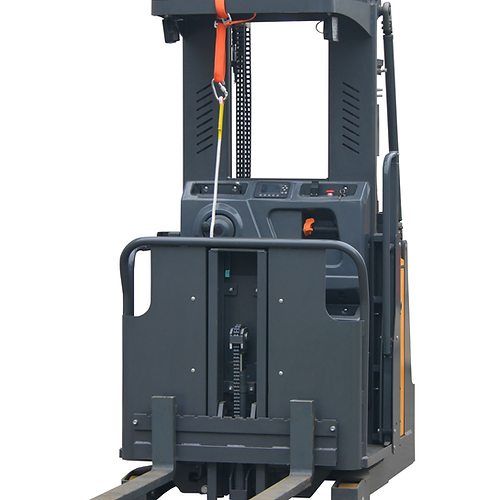

The EKKO EOP68 Electric Mid-Level Order Picker is designed for efficient order picking from racking and storage facilities, manufacturing floors, and warehousing. Constructed with high-quality steel and components, it features durable drives to withstand various terrains, usage scenarios, impacts, and directional changes, providing confidence and assurance in any application.
Resources Sheets
Features
- Load Capacity: 2200 lb
- Raised Height: 177" (14.75 ft.)
- Adjustable Forks
- Auxiliary Fork
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- German AC Drive Motor
- Battery: 24V/350Ah
- Charger: 24V/50A
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
- 3 Years Limited Warranty
Specifications
- Model: EOP68
- Power Unit: Electric
- Operation: Stand On
- Rated Loading Capacity (Q lbs): 2200
- Load Center (c Inch): 19.68
- Between Fork Backrest & Front Wheel (x Inch): 7.56
- Wheelbase (y Inch): 53.46
- Service Weight with Battery (lbs): 6270
- Wheels Type: PU (Polyurethane)
- Driving Wheel Size (Φ×w Inch): Φ9.84×5
- Bearing Wheel Size (Φ×w Inch): Φ5.9×3.23
- Wheels, Number Front/Rear (x = Driven): 1/2
- Track Width (b11 Inch): 37.8
- Lowered Mast Height (h1 Inch): 93.11
- Lifting Height (h3 Inch): 177.16
- Extended Mast Height (h4 Inch): 266.65
- Height of Overhead Guard (Cabin) (h6 Inch): 89.48
- Height of Seat/Stand-On Platform (h7 Inch): 10.67
- Additional Lift Height (h9 Inch): 30.71
- Total Lift Height (h10 Inch): 208.66
- Platform Lifting Height (h12 Inch): 187.83
- Lowered Fork Height (h13 Inch): 1.97
- Picking Height (h15 Inch): 239.01
- Overall Length (l1 Inch): 111.41
- Body Length (l2 Inch): 69.29
- Overall Width (b1/ b2 Inch): 39.37/145.28
- Fork Size (s/e/l Inch): 1.37/3.93/42.13
- Width of Fork Fixing Frame (b3 Inch): 35.83
- Outside Fork Width (b5 Inch): 34.33
- Min. Ground Clearance (m2 Inch): 1.97
- Aisle Width for Pallets 39.37×47.24 Crossways (Ast Inch): 122.24
- Aisle Width for Pallets 31.5×47.24 Lengthways (Ast Inch): 126.77
- Turning Radius (Wa Inch): 61.81
- Travel Speed, Laden/Unladen (km/h): 8
- Lifting Speed, with/without Load (Cabin) (mm/s): 140/150
- Lifting Speed, with/without Load (Fork) (mm/s): 130/140
- Lowering Speed, with/without Load (Cabin) (mm/s): 240/250
- Lowering Speed, with/without Load (Fork) (mm/s): 130/95
- Climbing Ability, with/without Load (%): 3/6
- Brake Type: Electromagnetic Brake
- Drive Motor (kW): 3
- Lift Motor (kW): 6
- Battery, DIN 43531/35/36 A,B,C,No: no
- Battery Voltage/Rate Capacity (V/Ah): 24/350
- Battery Weight (±5%) (LBS): 600
- Type of Drive Control: AC
- Noise Level (dB(A)): ≤75
