EKKO EK14-130Li Lithium-Ion Counterbalanced Walkie Stacker - Efficient & Sustainable Material Handling Solution

Description

The EKKO EK14-130LI Lithium Powered Counterbalanced Walkie Stacker is designed for versatility, combining the features of a forklift and a walkie stacker. It's suitable for various applications, including loading and unloading trucks, handling in stock rooms, manufacturing floors, and warehouse environments. Built with high-quality steel and components, the stacker is equipped with durable drives to handle different terrains, usage scenarios, impacts, and directional changes. It has a load capacity of 3300 lbs and can reach a raised height of 130" (10.83ft). The stacker features adjustable forks (8.6-28.3"), a Curtis Controller, 24V Center Drive Motor, 24V Lift Motor, and a 24V/150Ah Lithium battery. It also includes polyurethane wheels, ergonomic handle and controls, and comes with a charger. The stacker is backed by a 3-year limited warranty.

Resources Sheets

• Service Manual
• Parts List
• Warranty

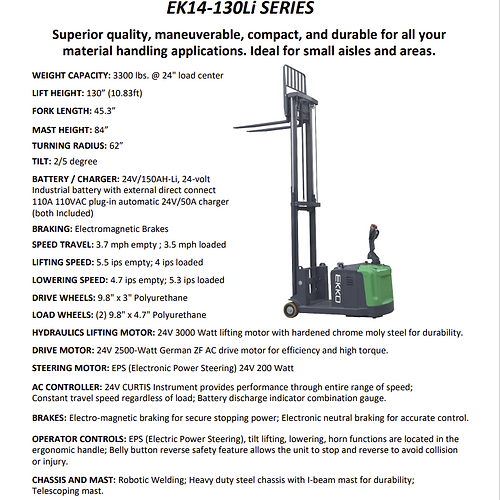

Features:

• Load Capacity: 3300 lbs
• Raised Height: 130" (10.83ft)
• Adjustable Forks: 8.6-28.3"
• Fork Length: 45.3"
• Tilt: 2/5 Degree
• Curtis Controller
• 24V Center Drive Motor
• 24V Lift Motor
• Battery: 24V/150Ah Lithium
• Polyurethane Wheels
• Ergonomic Handle and Controls
• Steel Construction with Robotic Welding
• Charger Included
• Battery Included
• 3 Years Limited Warranty

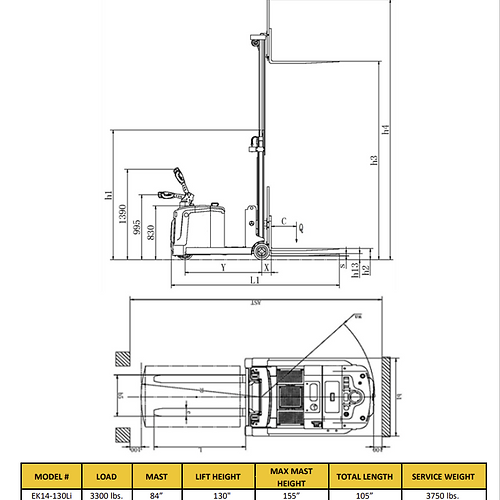

Specifications

• Model: EK14-130LI
• Drive Type: Electric
• Type of Operation: Walkie type
• Load Capacity (Q): 3300 lbs
• Load Center Distance (c): 24"
• Distance Between Fork Backrest and Front Wheel (x): 6"
• Wheelbase (y): 47"
• Service Weight (with battery): 3750 lbs
• Tire Material: PU
• Driving Wheel Size (Φ×w): Φ9.8×3.1"
• Front Wheel Size (Φ×w): Φ9.84×4.71"
• No of Driving Wheel/Balance Wheel/Bearing Wheel (X=Driving Wheel): 2/1X
• Load Capacity Power: Electric
• Operator Type: Stand
• Mast/Fork Carriage Tilt, Forward/Backward (α/β): 2/5 degrees
• Lowered Mast Height (h1): 84"
• Free Lift Height (h2): 4"
• Lift Height (h3): 130"
• Extended Mast Height (h4): 155"
• Height of Seat/Stand-on Platform (h7): 5mm
• Fork Carriage Width: 3.5"
• Overall Length (l1): 105"
• Max Driving Speed Laden/Unladen: 16850/204724 inches/h
• Overall Width (b1): 39"
• Fork Size (s/e/l): 1.4/4/37"
• Fork Width (b5): 8.7-28"
• Ground Clearance Under Mast (m1): 2.4"
• Steering Motor: 24V/0.2kw
• Aisle Width for Pallets 1000*1200 Crossways (Ast): 119"
• Aisle Width for Pallets 800*1200 Lengthways (Ast): 123"
• Turning Radius (Wa): 62"
• Lifting Speed Load/Unload: 4/5.5 inches/s
• Lowered Speed Load/Unload: 5.3/4.7 inches/s
• Maximum Gradeability Load/Unload: 6/10%
• Charger: 24V/50A
• Drive Motor (kW): 2.5
• Lift Motor (kW): 3.0
• Battery Voltage/Rate Capacity (V/Ah): 24V/150Ah-Li
